AMAS VR Software

AMAS lets you physically control robotics arms remotely over the internet, using intuitive gestures in an immersive 3D environment.


Integrated Models

Integrated plug and play models utilising our SenseKit, RoboKit, and AMAS App running on Oculus Quest 2. The system comes integrated with 3rd party robotic hardware with all the hardware included.

Contact us to buy the Extend Robotics Integrated Models.

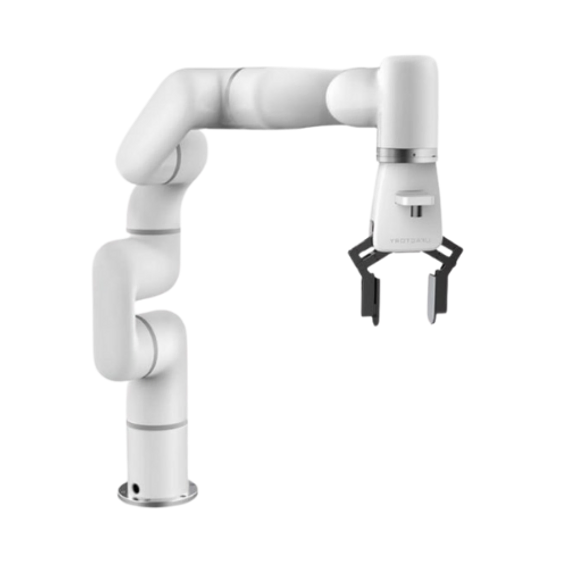

xArm6 Robotic Arm

Our xArm6 robotic arm set-up provides a low-cost, highly capable configuration perfect for demonstrations at events and less intensive, light industrial and manufacturing uses.

  • Futuristic innovation, great WOW factor in showcase

  • Interactive and Fun experience to start conversation with visitors

  • Plug and play, easy to use, from a mains socket

  • Elegant and Lightweight design

  • Affordable cost

  • Modular and customizable for mobile application or custom PoCs

xArm6 Demo Package Components
AMAS Core

1 year Software License

for 1 operator seat

To unlock connectivity feature to physical Arm6.


SenseKit Kinect

Volumetric sensing module, to capture and stream 3D visual information of the workspace around the robot, to be rendered in the VR app.


RoboKit xArm6

Robot controller gateway, to establish communication and control from VR app to physical robot

3rd Party
xarm 4.webp

xArm6 Specis

  • Degrees of Freedom: 6

  • Repeatability: ±0.1 mm

  • Payload: 5 kg

  • Weight (robotic arm only): 12.2 kg

  • Height: 1029 mm

  • Reach: 700 mm


Components Included

  • Oculus Quest 2

  • Laptop (VR Ready)

  • WiFi Router

  • xArm6 Robot

  • xArm Gripper

Untitled design.png

Universal Robotic Arm

Our UR robotic arm set up is perfect for manufacturing, warehouse and medium – heavy industrial use.

  • UR+ certified hardware and software

  • World’s largest cobot vender, Industrial standard cobot

  • World’s biggest ecosystem of peripheral hardware and software

  • Plug and play, easy to use, from a mains socket

  • Modular and customizable for mobile application or custom PoCs

  • Distribute through UK's largest UR partner RARUK AMAS page.

RAR UK LOGO.png
Universal Robots UR+ Partner Black Web.png
UR+ Package Components
AMAS Core

1 year Software License

for 1 operator seat

To unlock connectivity feature to physical UR5e


SenseKit Kinect

Volumetric sensing module, to capture and stream 3D visual information of the workspace around the robot, to be rendered in the VR app.

NewMount Front_edited.jpg

RoboKit UR

Robot controller gateway, to establish communication and control from VR app to physical robot

3rd Party

UR5e Specs

  • Weight: 18.4 kg / 40.6 lbs.

  • Payload: 5 kg / 11 lbs.

  • Reach: 850 mm / 33.5 in.

  • Joint ranges: +/- 360°

  • Speed: All joints: 180°/s.

  • Repeatability: +/- 0.1 mm / +/- 0.0039

  • in (4 mils)

  • Footprint: Ø149 mm / 5.9 in.


Components Included

  • Oculus Quest 2

  • Laptop (VR Ready)

  • WiFi Router

  • xArm6 Robot

  • xArm Gripper

TIAGo Mobile Robotic System

Our mobile robotics system is perfect for research and service industry uses in large facilities. Our system can be used to make remotely controlled vehicles significantly easier to drive.

  • All-in-one Mobile manipulator

  • Power-on-and-go system, easy to use

  • Can be used to provide remote service in facilities such as: shopping mall, care home, stadium, hospital

  • Perfect for research

  • Joystick navigation on VR hand controller

  • High degree of freedom operation (7 DoF arm + 1 DoF torso + 2 DoF head + 2 DoF base)

TIAGo Package Components
AMAS Core

1 year Software License

for 1 operator seat

1. To unlock connectivity feature to PAL Tiago Steel in the AMAS VR app Store Page, to operate physical PAL Tiago Steel robots

2. Volumetric sensing firmware installed on Tiago robot, to capture and stream 3D visual information of the workspace around the robot, to be rendered in the VR app.

3. Robot controller firmware installed on Tiago robot, to establish communication and control of base, arm and head movement from VR app to physical robot

3rd Party

TIAGo Specs Body

  • Arm payload (at full extension) 3kg

  • (without end-effector)

  • Arm reach 87cm (without end-effector)

  • Torso lift 35cm Mobile Base

  • Drive Differential / Omnidirectional

  • (optional)

  • Max. speed 1.5 m/s

  • Operational enviroment Indoor


Components Included

  • Oculus Quest 2

  • Laptop (VR Ready)

  • WiFi Router

  • TIAGo Robot

Buy Now

Developer Kit Shop

Explore the Extend Robotics technology available for purchase or get in contact with us to arrange a demonstration.

Extend Robotics VR-based teleoperation robot deployed in BT Futurezone in London Headquarter, BT - One braham.
